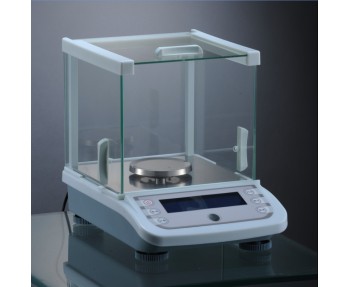

Determine Solid Density In Lab Electronic Balances
Electronic balances as well as density examination assemblies are often used to determine solids density throughout material measurement and analysis in everyday research laboratories.
Before doing density dimensions, we need to do the complying with prep work:
1. Electronic balance. The accuracy of the electronic balance should be selected according to the particular demands of the precision of the measured thickness data, as well as the capability of the digital balance ought to be picked according to the quantity and also weight of the example to be checked. Prior to the test, it is essential to preheat the prepared electronic equilibrium for a long period of time and make necessary improvements to make sure the accuracy of the measurement data.
2. Check the parts. It is required to choose an ideal examination element. For example, for some materials that are large in dimension and also can not be placed in the considering chamber, the under-hook test part must be chosen.
3. Taste to be tested. In order to determine the accuracy of the density in consideration of the influence of the surface stress of water, it is advised that the weight of the sample to be determined be greater than 1 g. In order to boost the measurement precision, it is advised to choose an example with a shape regulation and a tiny surface roughness.
4. Select the ideal auxiliary liquid. Usually readily available: water, alcohol, and also others. When testing the complementary fluid, it is required to select according to the nature of the particular examination example. For example, if it is easy to react with water, alcohol can be chosen as the auxiliary complementary fluid.
Once you have the equipment and samples you require, adhere to these actions:
1. Open up the left or appropriate side of the lab electronic balance and get rid of the weighing pan and put the density bracket into the digital balance.
2. Area the bracket in the suitable setting over the bracket to ensure that the bracket does not come into contact with the bracket.
3. Area the beaker in the facility of the stand. The thermometer is put into the beaker to measure the existing temperature level of the liquid.
4. Inject a referral liquid of known density (usually water or alcohol) right into the beaker to guarantee that the strong to be tested can be entirely immersed by the fluid more than 1 cm.
5. Place the hanging basket on the repairing bracket to ensure that there is no air bubble on the surface and does not touch the beaker or thermostat.
6. Turn on the digital balance switch.
7. Shut the windshield and also get rid of the tare weight;
8. Open the digital balance windscreen and place the determined strong on the weighing arm of the fixed brace or the considering pan at the top of the hanging basket; if the mass of the measured solid airborne is above 20g, position it on the top of the hanging basket. Weighing in the considering frying pan; Note: For solids with a density less than the supporting fluid density, the weighing web at the end of the hanging basket must be reversed to press the object under test. If the buoyancy of the strong is more than the weight of the hanging basket, the weighing need to be assisted by putting an extra weight on top of the hanging basket. After filling the additional stainless steel weights, the digital balance is peeled off as well as the weighing is begun once more.
9. Shut off the digital balance windproof, after the electronic balance is steady, the digital balance will instantly record the evaluating outcome A;
10. Open up the electronic balance windproof door, remove the strong to be tested, shut the windproof door and also get rid of the tare weight;
11. Open up the electronic balance and also unlock to position the gauged strong in the considering web at the end of the hanging basket, as well as make sure that no bubbles adhere to the solid surface (the surface bubbles can be removed with a tiny brush);
12. Shut the electronic balance windscreen. After the digital balance is steady, the digital balance will automatically tape-record the weighing result B. And determine the thickness of the solid to be evaluated according to the density formula.
