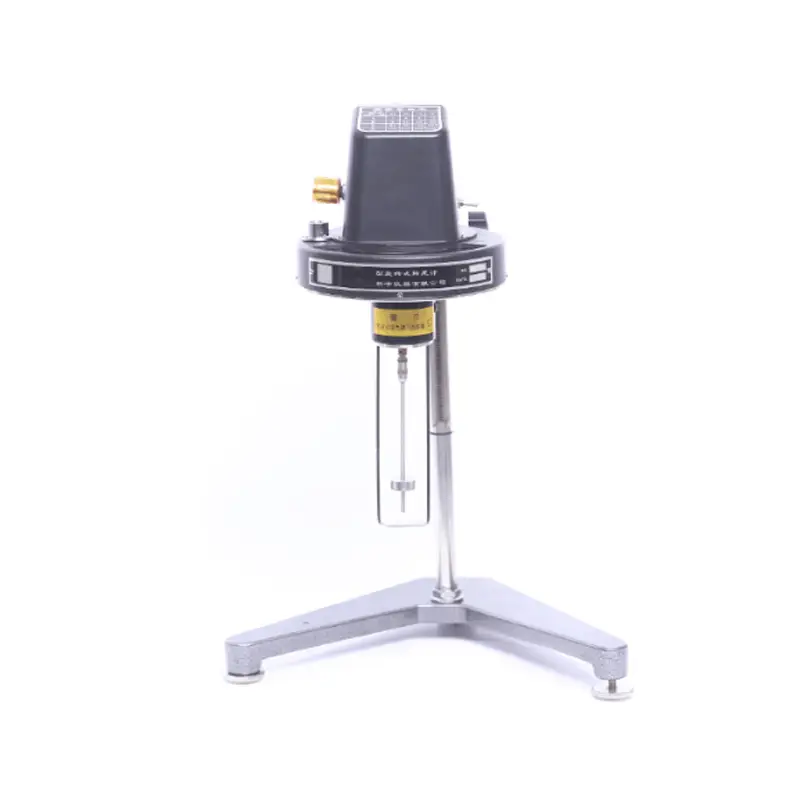

RM-1 10~100,000 mPa.s NDJ-1 Cosmetics Rotating Dial Viscometer 1

RM-1 10~100,000 mPa.s NDJ-1 Cosmetics Rotating Dial Viscometer 2

RM-1 10~100,000 mPa.s NDJ-1 Cosmetics Rotating Dial Viscometer

Rotational viscometer is an instrument used to measure fluid viscosity. It mainly measures the viscosity of various liquids by driving a stepper motor to rotate with high subdivision. Its working principle is to calculate the viscosity by measuring the resistance of the fluid during rotation. It is suitable for production and scientific research fields such as grease, paint, slurry, textile, food, medicine, adhesive, cosmetics, etc.

When using a rotational viscometer, first make sure the instrument is level and avoid creating bubbles when placing the rotor into the sample. The rotor must not touch the cup wall or bottom, and the sample must not exceed the specified scale. When measuring different samples, keep the rotor clean and dry to avoid affecting the accuracy of the measurement.

Inquiry

Write a Review

Model	RM-1 / NDJ-1
Measurement Range	1-100,000mpa.s
Spindles Specification	No. 1, 2, 3, 4( NO. 0 is optional) Note: The bigger the number of the Spindles, the bigger the measuring value
Rotating Speed of Spindles	6 / 12 / 30 / 60 rpm/min.
Interface	No
Measurement Tolerance	± 5%
Power	AC 220V ± 10% 50 Hz ± 10%
Working Condition	Temperature 5-35 degree Relative humidity no more than 80%
Outline Dimension (mm)	280×290×450 mm
Packing (mm)	470×300×420 mm
Net Weight (kg)	2 kg
Gross Weight (kg)	5 kg

Attachments:
l No. 1,2,3,4 Spindles
l No. 0 Spindles is optional
l Adapter
l Protection Frame
l Foundation Plate
l Up-Down Frame
l English Manual
l Hexagonal Spanner
l Solid Wrench
