FEATURES AND BENEFITS

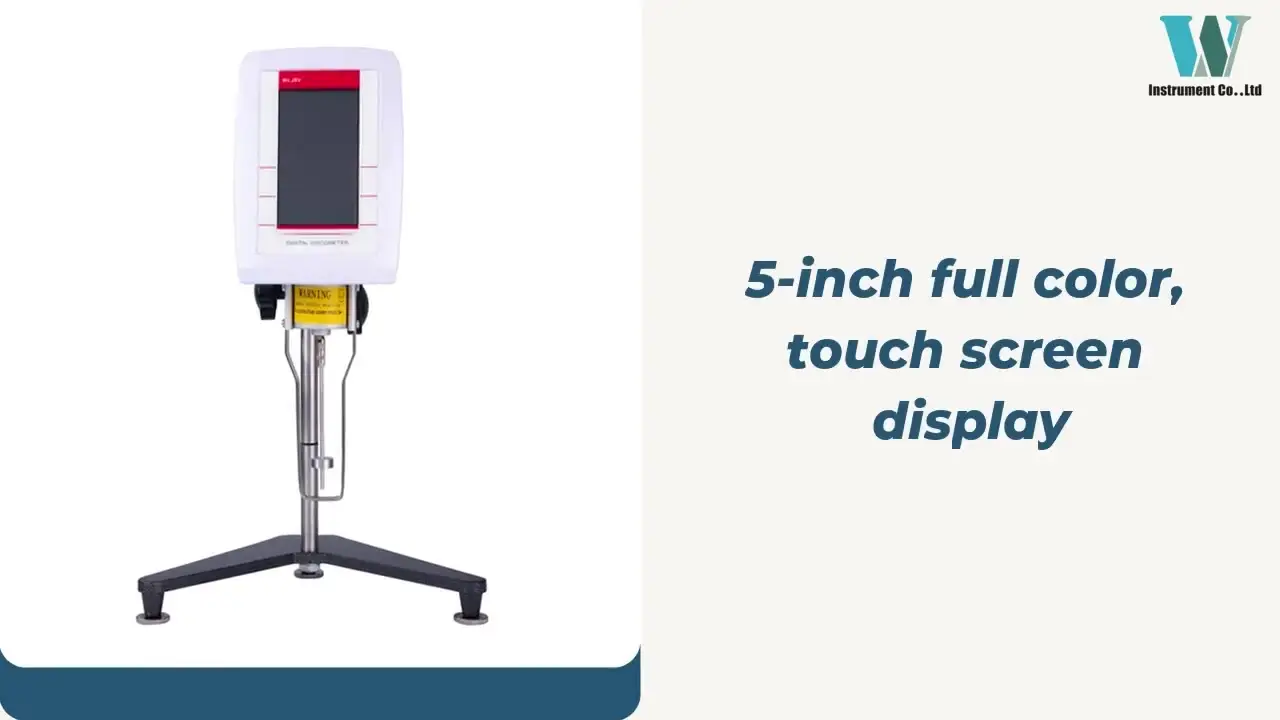

Introduction:5-Inch full color, touch screen display
Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination
USB/RS232 PC interface provides optional computer control and automatic data gathering capability

Download custom test programs with included PG Flash software

Inquiry

Write a Review

Model RV-T1 RV-T2

Measurement Range 1-100,000 mpa.s/cps 1-2,000,000 mpa.s/cps

Display 5 Inch Full Colorful Touch Screen

Spindles Specification No. 0, 1, 2, 3, 4

Rotating Speed 6 / 12 / 30 / 60 rpm/min. 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min.

Kinematic Viscosity Yes (mm2/s)

Liquid Density Yes (g/cm3)

Torque Yes

Shear rate Yes

Interface RS232 (Printer and PC interface)

Automatic Switch free selection of proper rotating speed or spindles number.

Stable Cursor Strip-type cursor fully charged displayed when reading basically stable

Measurement Tolerance <= ± 2%

Measurement Repeatability <= ± 1%

Power AC 100-240V/50-60 HZ

Working Condition Temperature 5-40 degree Relative humidity no more than 80%

Attachments 1. No. 0, 1,2,3,4 Spindles 2.Temperature probe (0-100 degree)

3. Adapter 4. Foundation Plate 5. Up-Down Frame 6. English Manual

Outline Dimension (mm) 370×325×280 mm

Packing (mm) 415×335×370 mm

Net / Gross Weight (kg) 6 kg / 7 kg

H.S. Code 90278099
