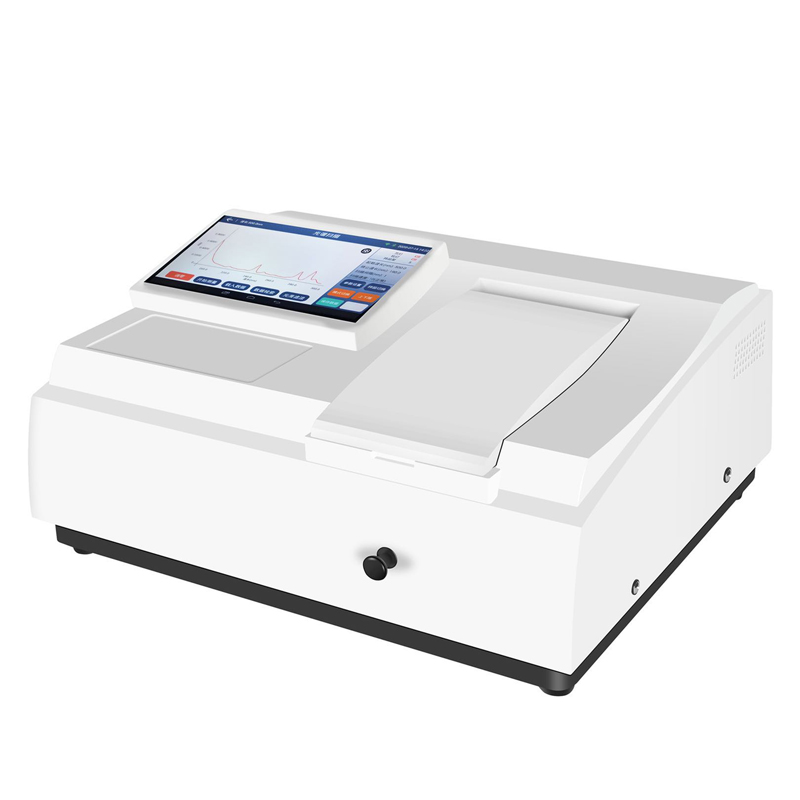

TU1810 190-1100nm Accurate UV Visible Spectrophotometer compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.W&J summarizes the defects of past products, and continuously improves them. The specifications of TU1810 190-1100nm Accurate UV Visible Spectrophotometer can be customized according to your needs.
Features:
l Variable bandwidth, suitable for different samples and different test requirements
l Photometric measurements: sample can be easily measured absorbance and transmittance at the specified wavelength. Multi-wavelength pinpoint test can be simultaneously test up to 30 wavelengths
l Quantitative analysis: automatically build standard curve, optional one-class and zero-class linear regression, second-class and third-class curve fitting, single and double wavelength calibration and three-point method; with store standard curve to facilitate future testing
l Qualitative Analysis: The scanning speed is adjustable, filter position can be fine-tuned, spectrum processing including scaling, smoothing, filtering, peak detection etc
l Dynamic testing, enzyme kinetics reaction rate.
l DNA \ RNA, protein test function: built-in specified formula to get the final result directly
l USB data interface with online dedicated PC workstation, with more powerful function and data processing capabilities.
It can be used for scientific research in disciplines such as physics, chemistry, medicine, biology, pharmacology, geology, etc. It is one of the important quality control instruments widely used in industries such as chemical engineering, pharmaceuticals, biochemistry, metallurgy, light industry, materials, environmental protection, medical testing, and analytical industries. It is an essential instrument for conventional laboratories
Principle
The principle of spectrophotometry analysis is to use the phenomenon of selective absorption of light of different wavelengths by substances to conduct qualitative and quantitative analysis of substances. Through the analysis of absorption spectra, the structure and chemical composition of substances can be determined. Using a prism or grating to obtain monochromatic light, the monochromatic light continuously passes through the solution in sequence, and the absorption of the solution at each wavelength is measured to obtain the absorption spectrum curve.
This instrument operates based on the principle of relative measurement, which involves selecting a solvent (distilled water, air, or sample) as a reference solution and setting its transmittance (i.e. transmittance T) to 100%. The transmittance of the tested sample is obtained relative to the reference solution. The change in transmittance (transmittance T) has a certain functional relationship with the concentration of the measured substance, and within a certain range, it conforms to the Lambert Beer law.
Shopping Now:
https://www.aliexpress.com/item/1005003675537764.html?spm=a2g0o.store_pc_groupList.8148356.18.56d044e1oDaXtH
https://www.aliexpress.com/item/1005001488200332.html?spm=a2g0o.store_pc_groupList.8148356.22.56d044e1oDaXtH
Instrument characteristics
Product Introduction
The TU-1810 automatic UV visible spectrophotometer adopts a new optical platform, ARM chip control and data processing, human-machine interaction operation, and the instrument has functions such as photometric measurement, automatic scanning, automatic curve building, dynamics, and content measurement on a single machine.
Design a unique optical system, 1200/mm high-performance holographic gratings, and imported high-performance receivers to ensure the instrument has excellent performance indicators.
● Imported environmentally friendly deuterium lamp system, effectively reducing your inhalation of ozone; Original imported OSRAM tungsten lamp holder and OSRAM long-life tungsten lamp. ● Advanced control system that can monitor the real-time lighting time of deuterium and tungsten lamps;
The design of socket type deuterium lamp and tungsten lamp can save you the trouble of optical debugging after changing the lamp;
● A spacious sample room with 5-100mm color comparison dishes of various sizes; Can be directly connected to a printer to print spectra and experimental data;
GLP self identification function, which can detect the wavelength accuracy and photometric accuracy of the instrument at any time as needed, and issue testing reports;
● Powerful storage function that can store various types of data and graphs;
Models | TU-1810 |
Operation mode | Host or PC operating including on-line software |
Wavelength range | 190 - 1100nm |
Spectral bandwidth | 1.8nm |
Optical system | Accurate , Czerny-Turner, Grating 1200line/mm |
Wavelength Accuracy | ±0.1 nm（656.1 nm D2）,±0.3 nm(the whole wavelength range) |
Wavelength Repeatability | ±0.15nm |
Wavelength Resolution | 0.1nm |
Photometric Range | 3 to 3A ; 0-200%T; -9999 to 9999C |
Photometric Accuracy | ±0.002A(0～0.5A) |
Photometric Repeatability | ±0.001A(0～0.5A) |
Stray light | ≤ 0.05%T （220 nm，NaIï¼›340 nm，NaNO2） |
Baseline Flattness | ±0.0015A（190～1100nm） |
Stability | ±0.001A/hr @500nm ,0A |
Photometric noise | ±0.001A |
Derivative resolution | >0.5 |
Data output | 320×240 array graphic LCD |
Size | 470×390×225 |
Weight | 13.5Kg |
