CE ROHS UV1600PC English Software 190-1100nm UV/VIS Ultraviolet Visible UV Spectrophotometer compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.W&J summarizes the defects of past products, and continuously improves them. The specifications of CE ROHS UV1600PC English Software 190-1100nm UV/VIS Ultraviolet Visible UV Spectrophotometer can be customized according to your needs.

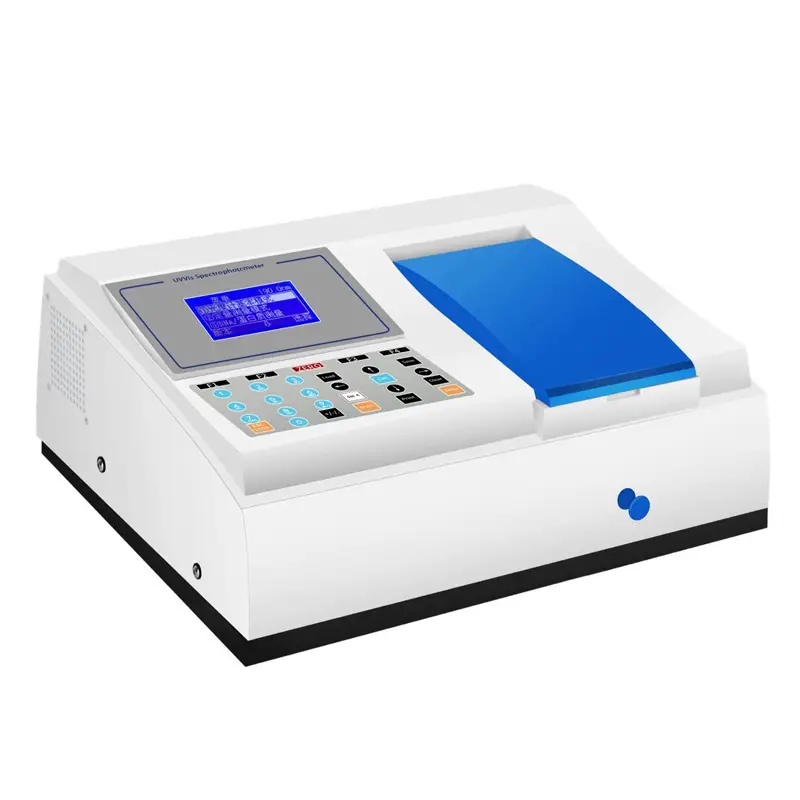

UV-1600PC of accurate scanning UV-visible spectrophotometer is a reliable and precise laboratory instruments, capable of photometric measurements, quantitative analysis, qualitative analysis, dynamic analysis, DNA \ RNA, protein testing. High performance, high quality and a variety of practical features have earned a good reputation
Function
l Variable bandwidth, suitable for different samples and different test requirements
l Photometric measurements: sample can be easily measured absorbance and transmittance at the specified wavelength. Multi-wavelength pinpoint test can be simultaneously test up to 30 wavelengths
l Quantitative analysis: automatically build standard curve, optional one-class and zero-class linear regression, second-class and third-class curve fitting, single and double wavelength calibration and three-point method; with store standard curve to facilitate future testing
l Qualitative Analysis: The scanning speed is adjustable, filter position can be fine-tuned, spectrum processing including scaling, smoothing, filtering, peak detection etc
l Dynamic testing, enzyme kinetics reaction rate.
l DNA \ RNA, protein test function: built-in specified formula to get the final result directly
l USB data interface with online dedicated PC workstation, with more powerful function and data processing capabilities.
Performance feature
l Standard automatic 4-position cell holder, optional seven-position or 16-position cell holder
l Light source correction mechanism, the light source will be locating the best position when self-testing each time so that it can fix the offset focus position possibly caused by vibration during the transportation and the user don’t have to debugging light source after change it
l The models that pursuit of cost-effective introduced by customers, there are two configurations of host and software control. The instrument equipped with precise split beam optical system and rational design of circuit control section.
l Built-in SCM technology and qualitative & quantitative analysis software enable UV-1600 UV-Vis spectrophotometer realize automatic control, data acquisition and processing, spectroscopy, kinetics measurement, quantitative analysis, DNA and spectral scanning etc functions.
l UV-1600PC UV-Vis spectrophotometer sample chamber with an open structural design, a variety of optional accessories suitable for different applications, such as reflection sample holder, solid sample holder, water bath and auto sampler.
Instrument characteristics
The UV-1600PC automatic UV visible spectrophotometer adopts a new optical platform, ARM chip control and data processing, human-machine interaction operation, and the instrument has functions such as photometric measurement, automatic scanning, automatic curve building, dynamics, and content measurement on a single machine.Design a unique optical system, 1200/mm high-performance holographic gratings, and imported high-performance receivers to ensure the instrument has excellent performance indicators.
● Imported environmentally friendly deuterium lamp system, effectively reducing your inhalation of ozone; Original imported OSRAM tungsten lamp holder and OSRAM long-life tungsten lamp.
● Advanced control system that can monitor the real-time lighting time of deuterium and tungsten lamps;
The design of socket type deuterium lamp and tungsten lamp can save you the trouble of optical debugging after changing the lamp;
● A spacious sample room with 5-100mm color comparison dishes of various sizes; Can be directly connected to a printer to print spectra and experimental data;
GLP self identification function, which can detect the wavelength accuracy and photometric accuracy of the instrument at any time as needed, and issue testing reports;
● Powerful storage function that can store various types of data and graphs;
Shopping Now: https://www.aliexpress.com/item/32878022856.html?spm=a2g0o.store_pc_groupList.8148356.16.56d044e1oDaXtH
Instrument Usage
It can be used for scientific research in disciplines such as physics, chemistry, medicine, biology, pharmacology, geology, etc. It is one of the important quality control instruments widely used in industries such as chemical engineering, pharmaceuticals, biochemistry, metallurgy, light industry, materials, environmental protection, medical testing, and analytical industries. It is an essential instrument for conventional laboratories.
Models | UV-1600PC |
Operation mode | Host or PC operating including on-line software |
Wavelength range | 190 - 1100nm |
Spectral bandwidth | 2nm |
Optical system | Accurate , Czerny-Turner, Grating 1200line/mm |
Wavelength Accuracy | ±0.1 nm(656.1 nm D2),±1 nm(the whole wavelength range) |
Wavelength Repeatability | ±0.5nm |
Wavelength Resolution | 0.1nm |
Photometric Range | 3 to 3A ; 0-200%T; -9999 to 9999C |
Photometric Accuracy | ±0.002A(0~0.5A)±0.004A(0.5~1A) ±0.008A(1~2A) ±0.5%T(0~100%T) |
Photometric Repeatability | ±0.001A(0~0.5A)±0.002A(0.5~1A) ±0.004A(1~2A) |
Stray light | ≤ 0.1%T (220 nm,NaIï¼›340 nm,NaNO2) |
Baseline Flattness | ±0.0015A(200~1000nm) |
Stability | ±0.001A/hr @500nm ,0A |
Derivative resolution | >0.5 |
Data output | 128×64 array graphic LCD |
Size | 470×390×225 |
Weight | 13.5Kg |
