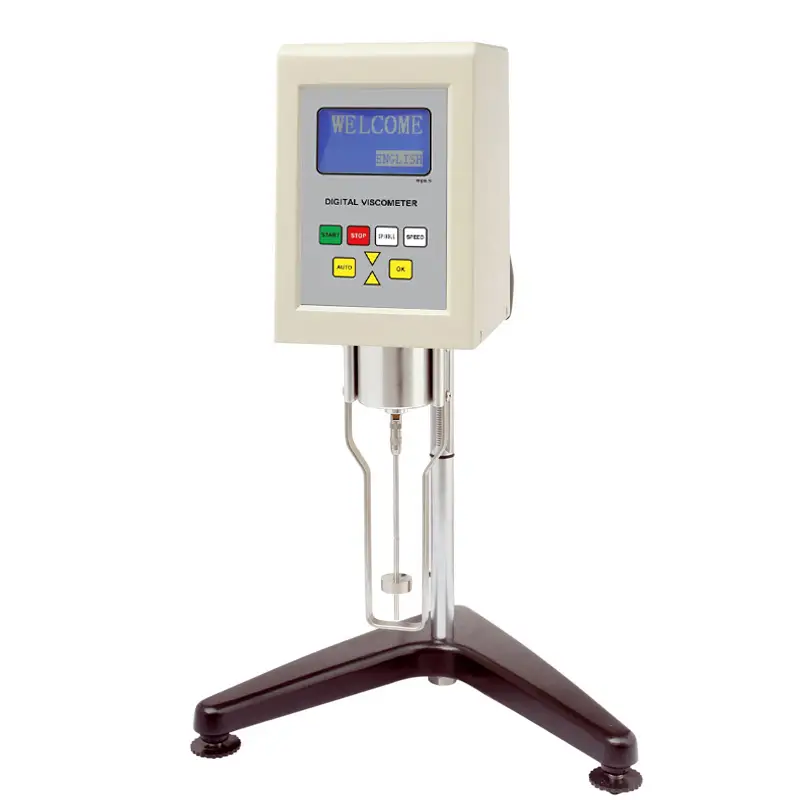

No. 0 1 2 3 4 Spindles mPa.s Test Small Liquid Rotary Viscometer NDJ 8S 5S Accurate Latex Viscosity Meter Viscosimeter
Working principle of digital viscometer
Digital viscometers usually use the rotation method to measure viscosity. The instrument controls the rotation of the rotor through a stepper motor. When the rotor rotates in the liquid, it will be subject to the resistance of the liquid. By measuring the rotation speed and resistance of the rotor, the instrument can calculate the viscosity of the liquid and display it on the LCD screen.
Features of digital viscometers
High precision: The digital viscometer has high measurement accuracy and reproducibility, and can provide accurate viscosity data.
Multi-function: It has a variety of rotors and speed options, suitable for measuring liquids of different viscosities
Intelligent: Some models have data acquisition and program-controlled analysis functions, which can realize automatic operation and data recording
Temperature control: The built-in temperature probe can monitor the sample temperature in real time to ensure the accuracy of the measurement results
Digital Viscometer Uses
The digital viscometer is an instrument used to measure the viscosity of liquids and is widely used in multiple industries and fields. The following are the main uses of digital viscometers:
Chemical industry: In the chemical industry, digital viscometers are used to measure the viscosity of various chemicals to help engineers optimize production processes and control product quality.
Oil and fat industry: Used to measure the viscosity of oils and fats to ensure the quality and stability of oils and fats。
Paint and coating industry: In the production and quality control of paints and coatings, digital viscometers are used to measure the viscosity of coatings to ensure the fluidity and construction performance of coatings.
Food industry: Used to measure the viscosity of food to ensure the quality and taste of food.
Drug industry: In drug research and development and production, digital viscometers are used to measure the viscosity of drugs to ensure the stability and bioavailability of drugs.
Cosmetic industry: Used to measure the viscosity of cosmetics to ensure the texture and stability of products.
Textile industry: In textile production, digital viscometers are used to measure the viscosity of slurries to ensure the uniformity and quality of textiles.
Model
RV-2T/DV-1/NDJ-8S
Measurement Range
1-2,000,000 mpa.s / cps
Display
LCD
Spindles Specification
No. 0, 1, 2, 3, 4
Note: The bigger the number of the Spindles, the bigger the measuring value
Rotating Speed of Spindles
0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm
Automatic Switch
free selection of proper rotating speed or Spindles number.
Stable Cursor
Strip-type cursor fully charged displayed when reading basically stable
Measurement Tolerance
± 2%
Power
AC 220V ± 10% 50 Hz ± 10%
Working Condition
Temperature 5-35 degree
Relative humidity no more than 80%
Outline Dimension (mm)
370×325×280 mm
Packing (mm)
400×360×310 mm
Net Weight (kg)
6.8 kg
Gross Weight (kg)
9 kg
Attachments
l No. 1,2,3,4 Spindles
l No. 0 Spindle
l Adapter
l Temperature Sensor
l Protection Frame
l Foundation Plate
l Up-Down Frame
l English Manual
l Hexagonal Spanner
l Solid Wrench
