School Teaching Lab Tray Balances compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.W&J summarizes the defects of past products, and continuously improves them. The specifications of School Teaching Lab Tray Balances can be customized according to your needs.

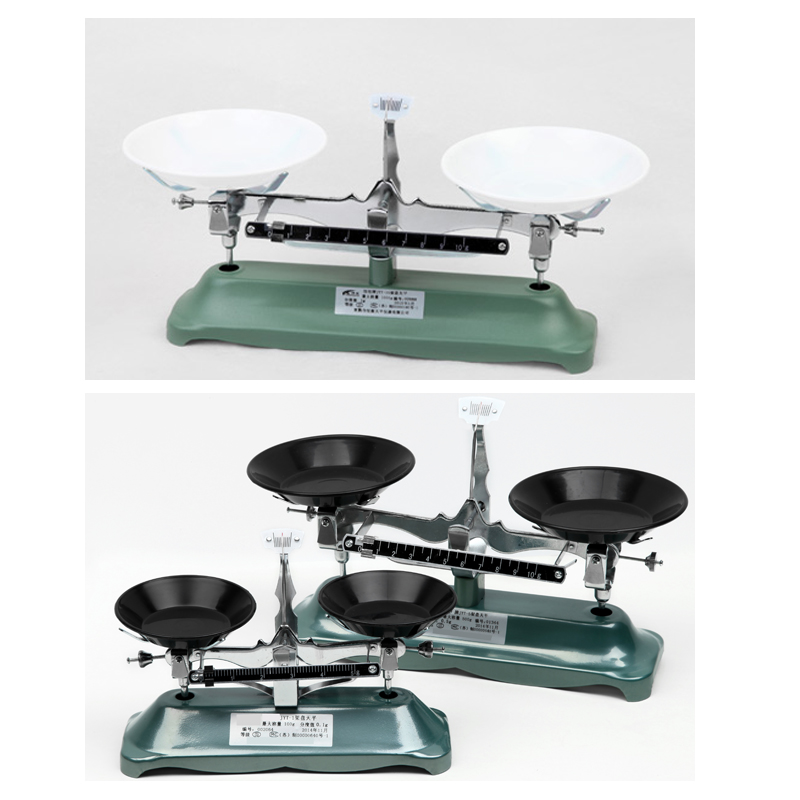

School Teaching Lab Tray Balances
Capacity from 100g to 5000g
It is made based on the principle of leverage, with a small plate at each end of the lever. The object to be weighed is placed on the left end, and a weight is placed on the right end. The center of the lever is equipped with a pointer. When the two ends are balanced, the mass (weight) of the two ends is equal. It is a commonly used weighing instrument. The accuracy is not high, usually 0.1 or 0.2 grams. The loads include 1g, 2g, 50g, 100g, etc.
Model | WJ-1 | WJ-2 | WJ-5 |
Capacity | 100 g | 200 g | 500 g |
Division | 0.1 g | 0.2 g | 0.5 g |
Outline (mm) | 215*72*140 | 215*72*140 | 205*82*145 |
Net Weight (1 pc) | 1 kg | 1 kg | 1.5 kg |
Gross Weight (kg) | 21 kg/carton | 21 kg/carton | 17 kg/carton |
Inner packing (mm) | 205*82*145 | 205*82*145 | 275*105*185 |
Packing | 20 pcs/carton | 20 pcs/carton | 10 pcs/carton |
Packing Size (mm) | 490*430*320 | 490*430*320 | 630*290*390 |
Min. Quantity | 50 pcs | ||
H.S. Code | 8423819000 | ||
Weights set | 5g-50g: 5g-1pc, 10g-1pc, 20g-2 pcs, 50g-1pc 5g-100g: 5g-1pc, 10g-1pc, 20g-2 pcs, 50g-1pc, 100g-1pc 10g-200g: 10g-1pc, 20g-2 pcs, 50g-1pc, 100g-2pcs, 200g-1pc | ||
Model | WJ-20 |
Capacity | 2000 g |
Division | 2 g |
Pan | 160 mm (stainless iron) |
Weights | 1kg-1g: 15 pcs, 1g-3pcs, 2g-1pc, 5g-1pc, 10g-2pcs, 20g-1pc, 50g-1pc, 100g-2pcs, 200g-1pc, 500g-1pc, 1000g-1pc |
Net Weight (1 pc) | 2 kg |
Gross Weight (1 box) | 3 kg |
Outline (L×W×H) | 360×250×100 mm |
Out Packing (4 pcs) | 710×440×260 mm (by carton) |
Gross Weight (kg) | 12 kg/carton |
Delivery Date | One Week |
H.S. Code | 8423819000 |
Structure
It consists of a tray, crossbeam, balance nut, indexing plate, scale, pointer, blade, base, scale, vernier, weight, nameplate, etc. The balance beam is supported by a fulcrum (axis) at the edge of the beam, forming two arms. Each arm is hung or supported by a plate, one of which (usually the right plate) holds a known weight object (weight), the other plate (usually the left plate) holds an object to be weighed, and the vernier scale slides on the scale. The pointer fixed on the beam indicates the weight of the object to be weighed when it does not swing and points towards the center scale or when the left and right swing amplitude is small and equal. There is a nameplate on the base of the tray scale, which records the maximum weight and sensitivity of the tray scale.
