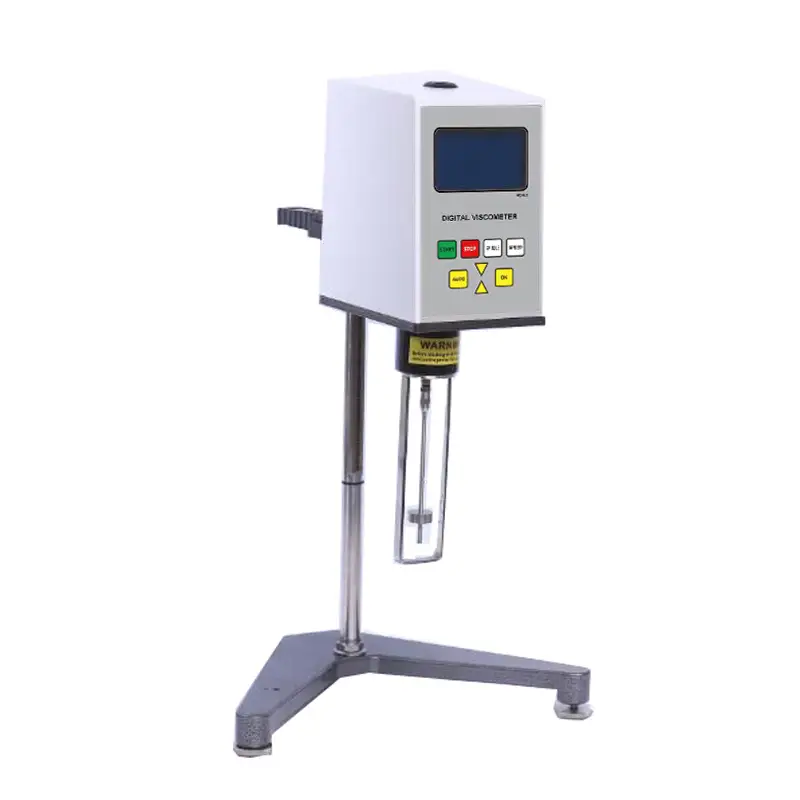

13,000,000 mPa.s Chemical Industry Rotary Viscosimeter Drug Food Accuracy Viscosity Meter Brookfield Viscometer Digital
Working principle of digital viscometer
Digital viscometers usually use the rotation method to measure viscosity. The instrument controls the rotation of the rotor through a stepper motor. When the rotor rotates in the liquid, it will be subject to the resistance of the liquid. By measuring the rotation speed and resistance of the rotor, the instrument can calculate the viscosity of the liquid and display it on the LCD screen.
Digital Viscometer Uses
The digital viscometer is an instrument used to measure the viscosity of liquids and is widely used in multiple industries and fields. The following are the main uses of digital viscometers:
Chemical industry: In the chemical industry, digital viscometers are used to measure the viscosity of various chemicals to help engineers optimize production processes and control product quality.
Oil and fat industry: Used to measure the viscosity of oils and fats to ensure the quality and stability of oils and fats。
Paint and coating industry: In the production and quality control of paints and coatings, digital viscometers are used to measure the viscosity of coatings to ensure the fluidity and construction performance of coatings.
Food industry: Used to measure the viscosity of food to ensure the quality and taste of food.
Drug industry: In drug research and development and production, digital viscometers are used to measure the viscosity of drugs to ensure the stability and bioavailability of drugs.
Cosmetic industry: Used to measure the viscosity of cosmetics to ensure the texture and stability of products.
Textile industry: In textile production, digital viscometers are used to measure the viscosity of slurries to ensure the uniformity and quality of textiles.
Model
RVDV
Measurement Range
10-13,000,000 mpa.s (cps)
Display
LCD
Spindles Specification
No. 0, 1, 2, 3, 4, 5, 6, 7
Note: The bigger the number of the Spindles, the bigger the measuring value
Rotating Speed of Spindles
0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm/min. with 1, 2, 3, 4# Spindles
0.5 / 1 / 2 / 2.5 / 4 / 5 / 10 / 20 / 50 / 100 rpm/min. with 5, 6, 7# Spindles
Interface
Printer Interface
PC Interface
Temperature Sensor Interface
Automatic Switch
free selection of proper rotating speed or Spindles number.
Stable Cursor
Strip-type cursor fully charged displayed when reading basically stable
Measurement Tolerance
± 1%
Working Condition
Temperature 5-35 degree
Relative humidity no more than 80%
Outline Dimension (mm)
370×325×280 mm
Packing (mm)
400×360×310 mm
Attachments
l No. 1, 2, 3, 4, 5, 6, 7 Spindless
l Adapter
l Temperature Sensor
l Protection Frame
l Foundation Plate
l Up-Down Frame
l English Manual
l Hexagonal Spanner
l Solid Wrench
Attachments | l No. 1, 2, 3, 4, 5, 6, 7 Spindless l Adapter l Temperature Sensor l Protection Frame l Foundation Plate l Up-Down Frame l English Manual l Hexagonal Spanner l Solid Wrench |
