A professional manufacture and sales of various electronic balances, moisture analyzers, viscometers and laboratory instrument manufacturer of weight measure instruments..

W&J | Hot Selling viscosity measurement devices series

This product is less likely to generate harmful electromagnetic rays which may cause diseases such as headache, diabetes, or even cancers.

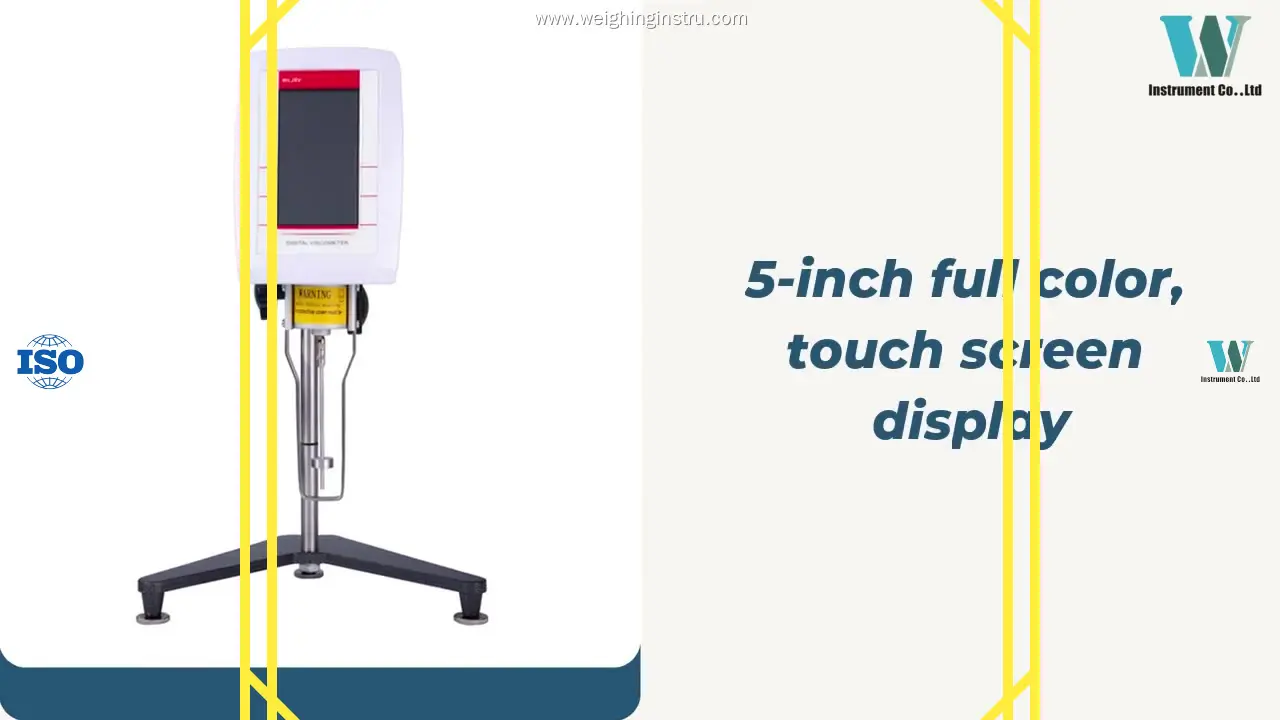

Introduction:5-Inch full color, touch screen display
Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination
USB/RS232 PC interface provides optional computer control and automatic data gathering capability

Download custom test programs with included PG Flash software

Inquiry

After years of solid and rapid development, W&J has grown into one of the most professional and influential enterprises in China. viscosity measurement devices We promise that we provide every customer with high-quality products including viscosity measurement devices and comprehensive services. If you want to know more details, we are glad to tell you.This product is electromagnetic compatibility. Complete EMC testings are performed in its manufacturing by teams of experienced EMC test engineers, using fully calibrated equipment.

Model RV-T1 RV-T2

Measurement Range 1-100,000 mpa.s/cps 1-2,000,000 mpa.s/cps

Display 5 Inch Full Colorful Touch Screen

Spindles Specification No. 0, 1, 2, 3, 4

Rotating Speed 6 / 12 / 30 / 60 rpm/min. 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min.

Kinematic Viscosity Yes (mm2/s)

Liquid Density Yes (g/cm3)

Torque Yes

Shear rate Yes

Interface RS232 (Printer and PC interface)

Automatic Switch free selection of proper rotating speed or spindles number.

Stable Cursor Strip-type cursor fully charged displayed when reading basically stable

Measurement Tolerance <= ± 2%

Measurement Repeatability <= ± 1%

Power AC 100-240V/50-60 HZ

Working Condition Temperature 5-40 degree Relative humidity no more than 80%

Attachments 1. No. 0, 1,2,3,4 Spindles 2.Temperature probe (0-100 degree)

3. Adapter 4. Foundation Plate 5. Up-Down Frame 6. English Manual

Outline Dimension (mm) 370×325×280 mm

Packing (mm) 415×335×370 mm

Net / Gross Weight (kg) 6 kg / 7 kg

H.S. Code 90278099

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
