W&J | Cost-effective rotational viscometer factory price

Regarding the quality control of W&J every production stage is under strict quality inspection. For example, its anti-static capacity is tested to ensure users' safety.

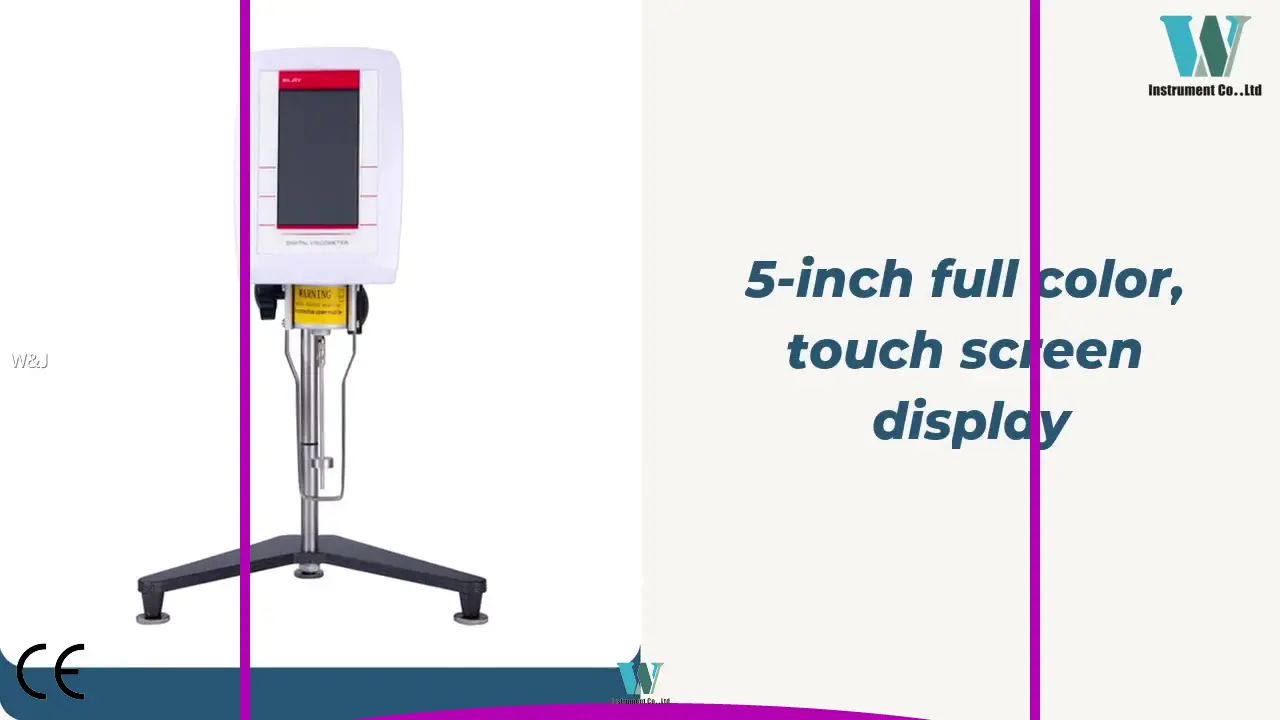

Introduction:5-Inch full color, touch screen display
Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination
USB/RS232 PC interface provides optional computer control and automatic data gathering capability

Download custom test programs with included PG Flash software

Inquiry

With strong R&D strength and production capabilities, W&J now has become a professional manufacturer and reliable supplier in the industry. All our products including rotational viscometer are manufactured based on the strict quality management system and international standards. rotational viscometer If you are interested in our new product rotational viscometer and others, welcome you to contact us.In order to achieve a compact and miniature design, W&J is carefully designed with the help of advanced integrated circuits technology which gathers and encapsulates major components on a board.

Model RV-T1 RV-T2

Measurement Range 1-100,000 mpa.s/cps 1-2,000,000 mpa.s/cps

Display 5 Inch Full Colorful Touch Screen

Spindles Specification No. 0, 1, 2, 3, 4

Rotating Speed 6 / 12 / 30 / 60 rpm/min. 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min.

Kinematic Viscosity Yes (mm2/s)

Liquid Density Yes (g/cm3)

Torque Yes

Shear rate Yes

Interface RS232 (Printer and PC interface)

Automatic Switch free selection of proper rotating speed or spindles number.

Stable Cursor Strip-type cursor fully charged displayed when reading basically stable

Measurement Tolerance <= ± 2%

Measurement Repeatability <= ± 1%

Power AC 100-240V/50-60 HZ

Working Condition Temperature 5-40 degree Relative humidity no more than 80%

Attachments 1. No. 0, 1,2,3,4 Spindles 2.Temperature probe (0-100 degree)

3. Adapter 4. Foundation Plate 5. Up-Down Frame 6. English Manual

Outline Dimension (mm) 370×325×280 mm

Packing (mm) 415×335×370 mm

Net / Gross Weight (kg) 6 kg / 7 kg

H.S. Code 90278099

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
