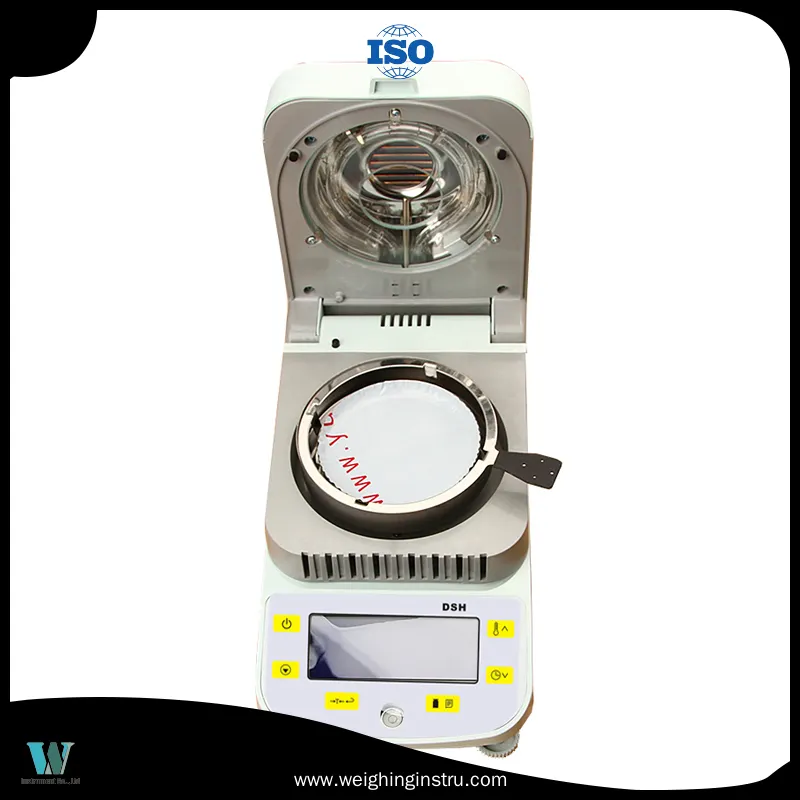

Digital Moisture Analyzer - High Precision Halogen Heating

• Moisture meters can be widely used in all industries that require rapid determination of moisture, such as medicine, grain, feed, seeds, rapeseed, dehydrated vegetables, tobacco, chemicals, tea, food, meat, textiles, agriculture, forestry, papermaking, rubber, plastics, textiles and other industries in laboratories and production processes.

•


• Model	DSH-50-1	DSH-50-5	DSH-50-10	DSH-100-1	DSH-100-5	DSH-100-10
  Capacity	0-50g			0-100g
  Precision	0.001g	0.005g	0.01g	0.001g	0.005g	0.01g
  Moisture %	0.1%	0.2%	0.3%	0.1%	0.2%	0.3%
  Heating time	1 – 99 minutes (stepping is 10 s.)
  Heating way	Halogen
  Working temperature	10 °C - 30 °C
  Interface	Rs232C
  Heating temperature	50 °C - 180 °C (stepping is 1 °C)
  Display	Dot-matrix LCD With Backlight
  Power	230/115Vac ± 15%
  N. W.	3kg
  Portable	Carry Case
  Overall	285×160×150 mm

The halogen moisture meter is designed based on the principle of pyrolysis weight and is a new type of rapid moisture detection instrument. While measuring the weight of the sample, the halogen heating unit and the moisture evaporation channel quickly dry the sample. During the drying process, the moisture meter continuously measures and instantly displays the sample's lost moisture content%. After the drying process is completed, the final measured moisture content value is locked and displayed. Compared with the international oven heating method, halogen heating can reach the maximum heating power in the shortest time, and the sample is quickly dried at high temperature. Its test results are well consistent with the national standard oven method, and it is replaceable, and the detection efficiency is much higher than the oven method. It only takes a few minutes to complete the measurement of general samples.

The instrument is simple to operate, the test is accurate, and the display part uses a red digital tube, the display value is clear and visible, and can display moisture value, sample initial value, final value, measurement time, temperature initial value, final value and other data, and has the function of connecting to a computer and a printer.
