Custom viscosity measurement instruments personalized Manufacturer | W&J

W&J has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product viscosity measurement instruments will bring you a lot of benefits. We are always standby to receive your inquiry. viscosity measurement instruments Today, W&J ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product viscosity measurement instruments and our company by directly contacting us.It has limited radio radiation which may cause headache and lapse of memory. The limited radio radiation has been proved by third-party authorities.

Model                                            RV-T1                                      RV-T2

Measurement Range            1-100,000 mpa.s/cps               1-2,000,000 mpa.s/cps

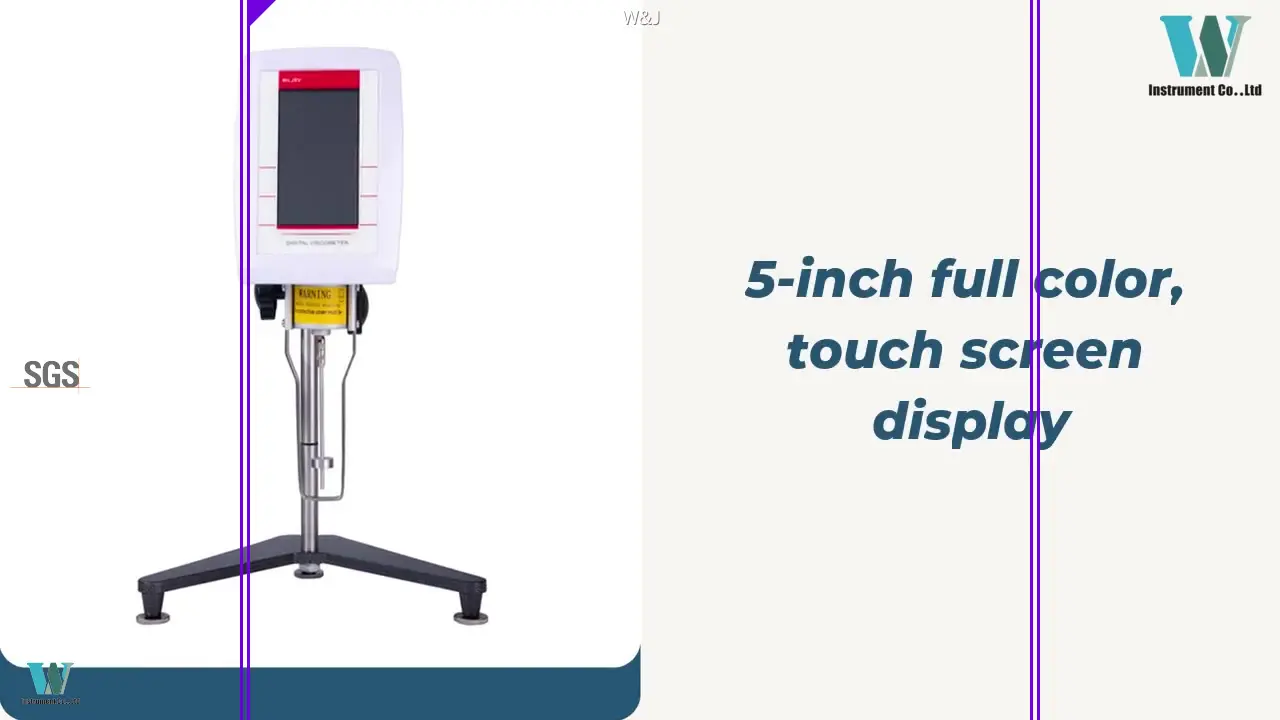

Display                                            5 Inch Full Colorful Touch Screen

Spindles Specification                            No. 0, 1, 2, 3, 4

Rotating Speed                   6 / 12 / 30 / 60 rpm/min.        0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min.

Kinematic Viscosity                                           Yes (mm2/s)

Liquid Density                                                   Yes (g/cm3)

Torque                                                               Yes

Shear rate                                                          Yes

Interface                                           RS232 (Printer and PC interface)

Automatic Switch                   free selection of proper rotating speed or spindles number.

Stable Cursor                         Strip-type cursor fully charged displayed when reading basically stable

Measurement Tolerance                                  <= ± 2%

Measurement Repeatability                             <= ± 1%

Power                                                      AC 100-240V/50-60 HZ

Working Condition                     Temperature 5-40 degree    Relative humidity no more than 80%

Attachments                        1. No. 0, 1,2,3,4 Spindles 2.Temperature probe (0-100 degree)

                                             3. Adapter 4. Foundation Plate 5. Up-Down Frame 6. English Manual

Outline Dimension (mm)                       370×325×280 mm

Packing (mm)                                        415×335×370 mm

Net / Gross Weight (kg)                          6 kg / 7 kg

H.S. Code                                                 90278099
