A professional manufacture and sales of various electronic balances, moisture analyzers, viscometers and laboratory instrument manufacturer of weight measure instruments..

Custom types of rotational viscometer series Manufacturer | W&J

Free of electromagnetic resonance or radio radiation, the product inflicts very little healthy influence on people even they use it for hours.

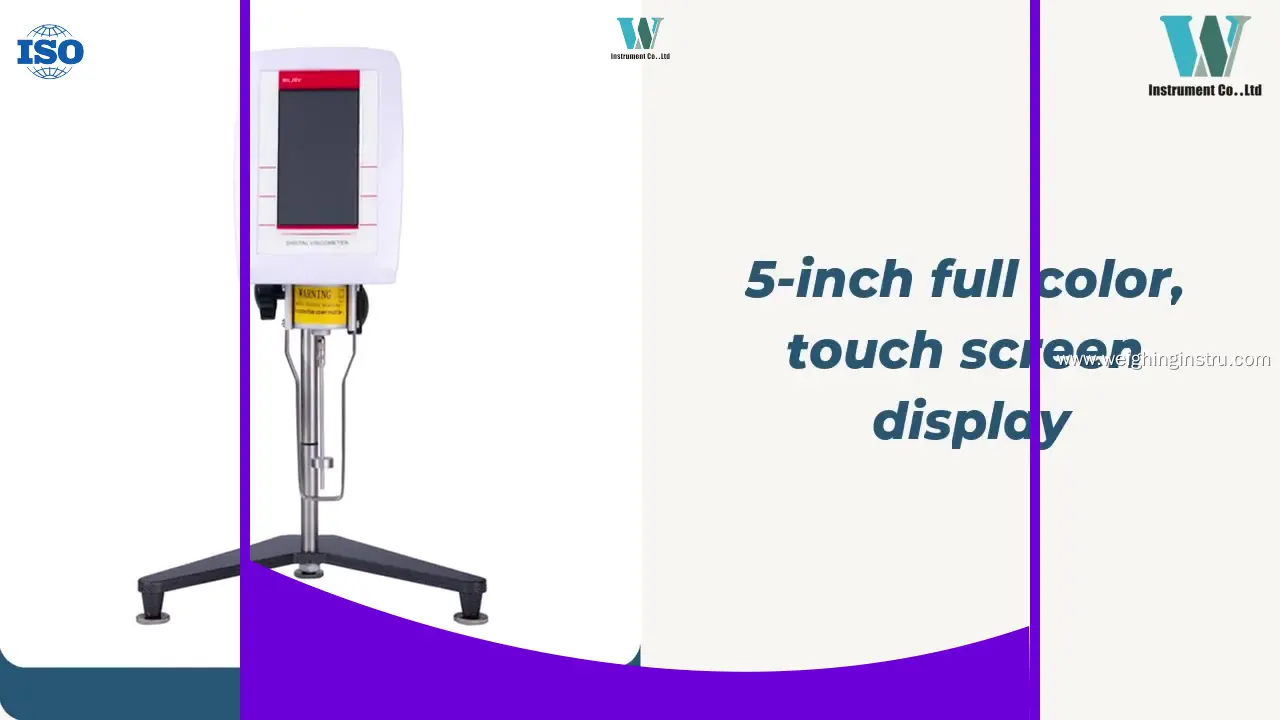

Introduction:5-Inch full color, touch screen display
Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination
USB/RS232 PC interface provides optional computer control and automatic data gathering capability

Download custom test programs with included PG Flash software

Inquiry

Relying on advanced technology, excellent production capabilities, and perfect service, W&J takes the lead in the industry now and spreads our W&J all over the world. Together with our products, our services are also supplied to be the highest-level. types of rotational viscometer We promise that we provide every customer with high-quality products including types of rotational viscometer and comprehensive services. If you want to know more details, we are glad to tell you.This product features high efficiency with low power consumption, and it is widely applied in the Internet, scientific research, and education fields.

Model RV-T1 RV-T2

Measurement Range 1-100,000 mpa.s/cps 1-2,000,000 mpa.s/cps

Display 5 Inch Full Colorful Touch Screen

Spindles Specification No. 0, 1, 2, 3, 4

Rotating Speed 6 / 12 / 30 / 60 rpm/min. 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min.

Kinematic Viscosity Yes (mm2/s)

Liquid Density Yes (g/cm3)

Torque Yes

Shear rate Yes

Interface RS232 (Printer and PC interface)

Automatic Switch free selection of proper rotating speed or spindles number.

Stable Cursor Strip-type cursor fully charged displayed when reading basically stable

Measurement Tolerance <= ± 2%

Measurement Repeatability <= ± 1%

Power AC 100-240V/50-60 HZ

Working Condition Temperature 5-40 degree Relative humidity no more than 80%

Attachments 1. No. 0, 1,2,3,4 Spindles 2.Temperature probe (0-100 degree)

3. Adapter 4. Foundation Plate 5. Up-Down Frame 6. English Manual

Outline Dimension (mm) 370×325×280 mm

Packing (mm) 415×335×370 mm

Net / Gross Weight (kg) 6 kg / 7 kg

H.S. Code 90278099

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
